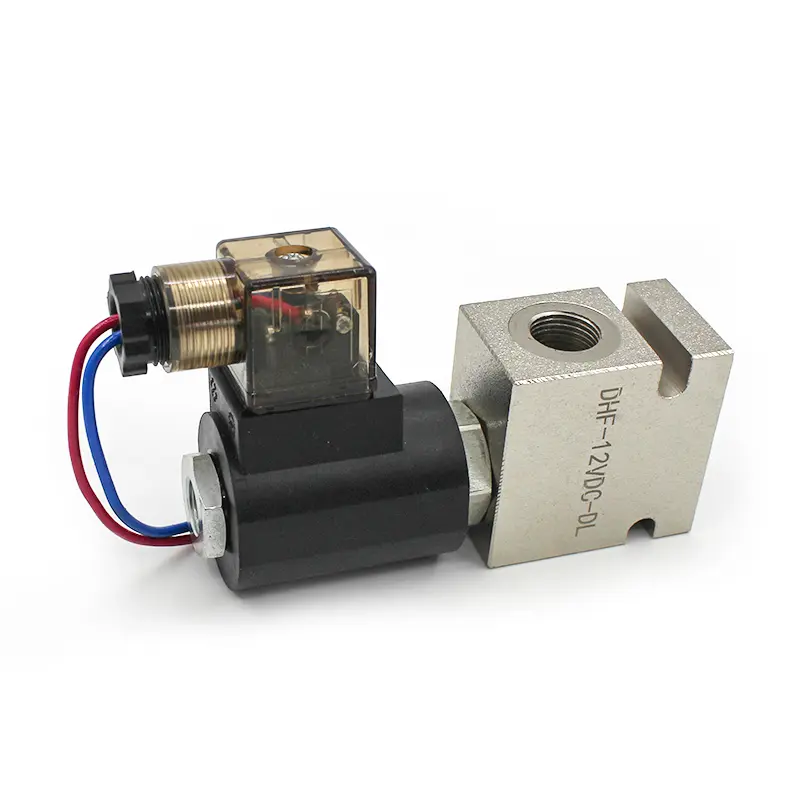

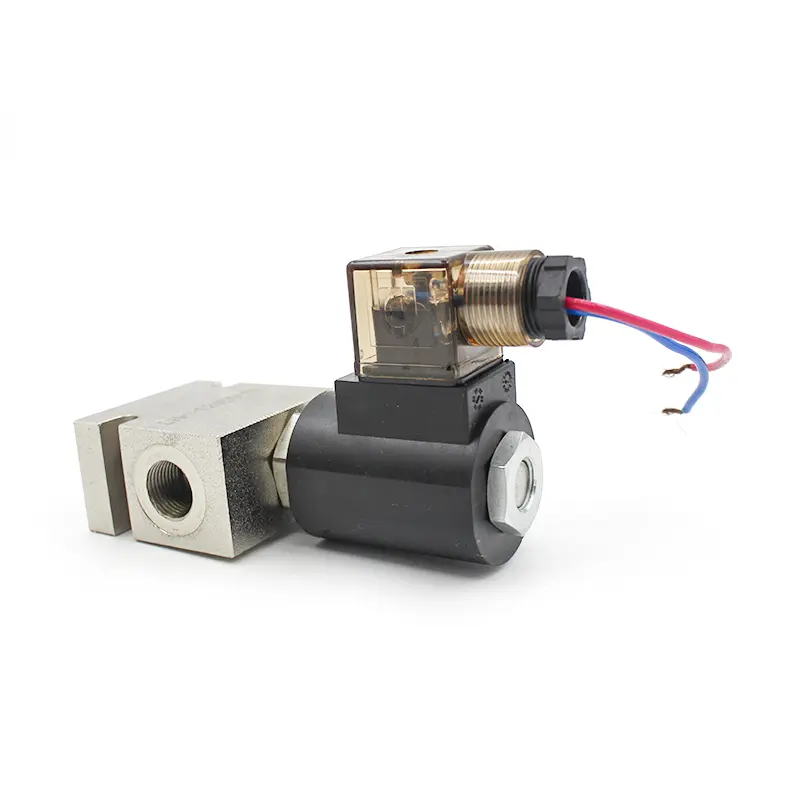

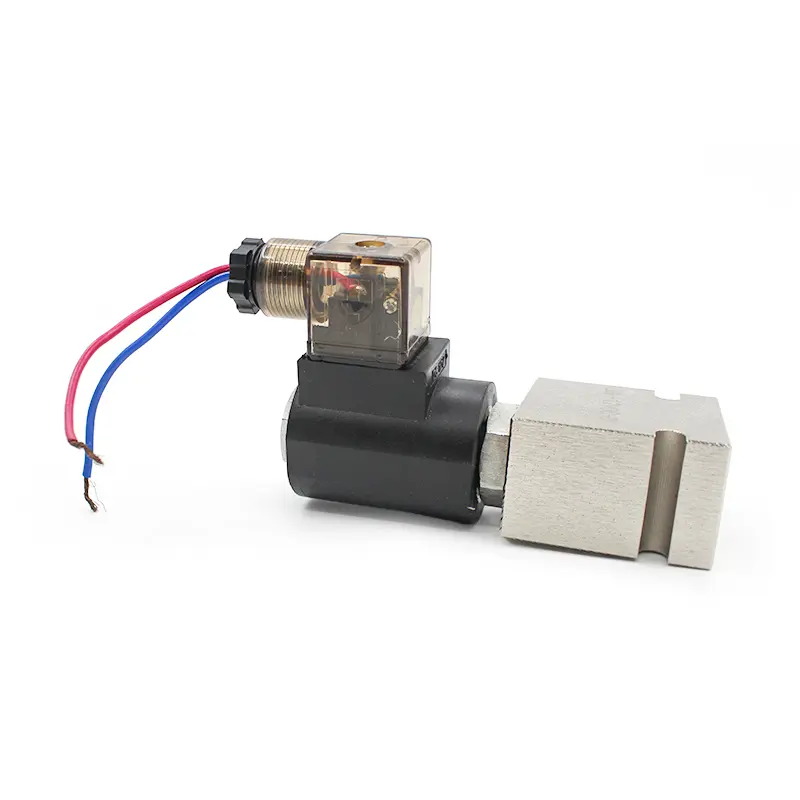

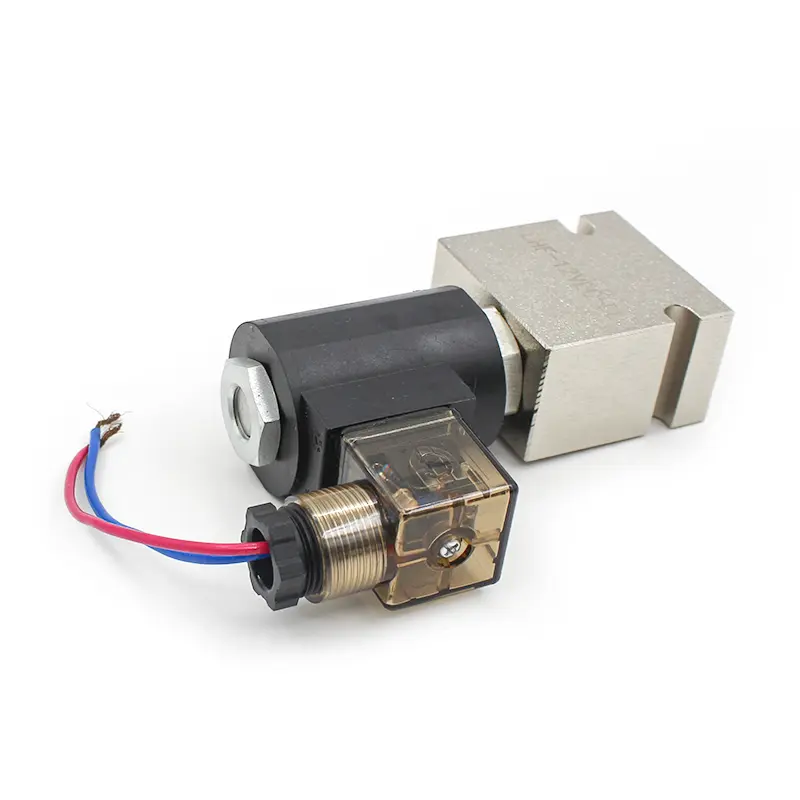

Solenoid Valve (Three Ports, Two Positions)

1.Direct-acting normally closed type, sensitive commutation;

2.No need for lubrication;

3.Multiple valves can be integrated to save installation space;

4.Equipped with manual device to facilitate installation and debugging;

5.There are a variety of standard voltage levels available.

Specification

Model	3V1-M5	3V1-06
working medium	Air (filtered through a filter above 40μm)
Action mode	Direct acting
Take-over diameter[Note 1]	M5	PT1/8
Number of positions	三/ 二位
lubricating	unnecessary
Use pressure range	0~0.8MPa(0~114psi)
Guaranteed pressure resistance	1.2MPa(175psi)
Operating temperature	-20~70℃
Flow aperture	φ1.2mm
Body material	Aluminum alloy

project	Specific parameters
Standard Voltage	AC220V	AC110V	AC24V	DC24V	DC12V
Use voltage range	AC:±15% DC;±10%
power consumption	4.5VA	4.5VA	5.0VA	3.0W	2.5W
protection level	IP65(DIN40050)
Heat resistance grade	B级
Power connection type	DIN socket type, outlet type
Excitation time	0.05 seconds or less
Maximum operating frequency [Note 1]	10 times/second
