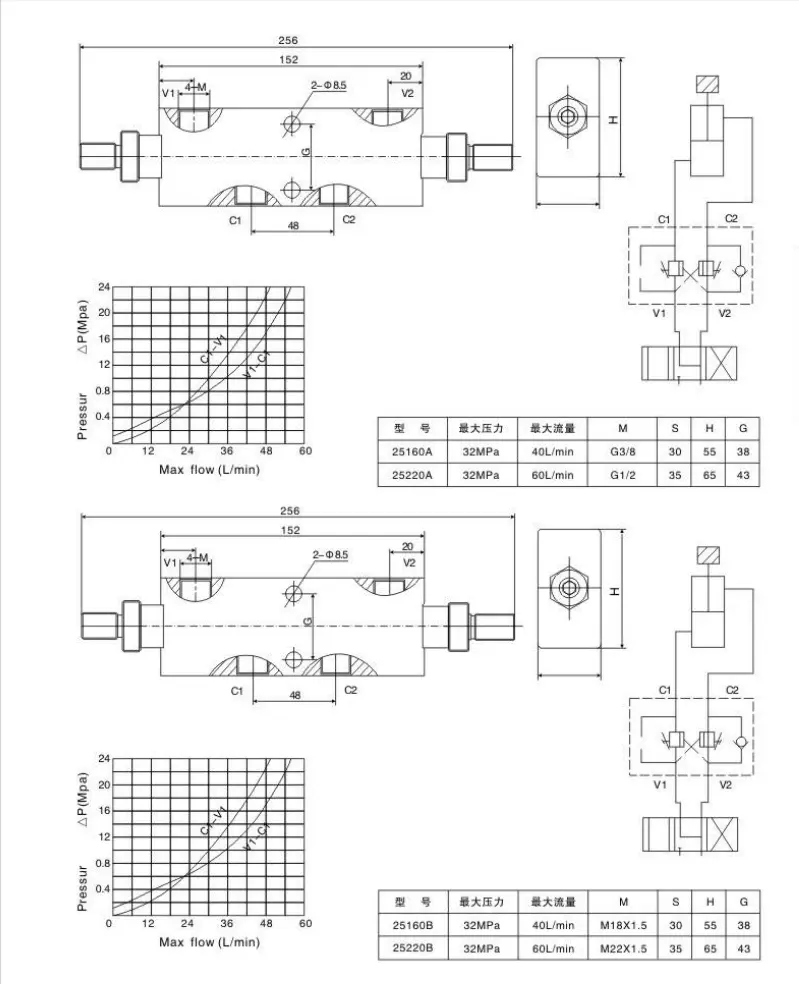

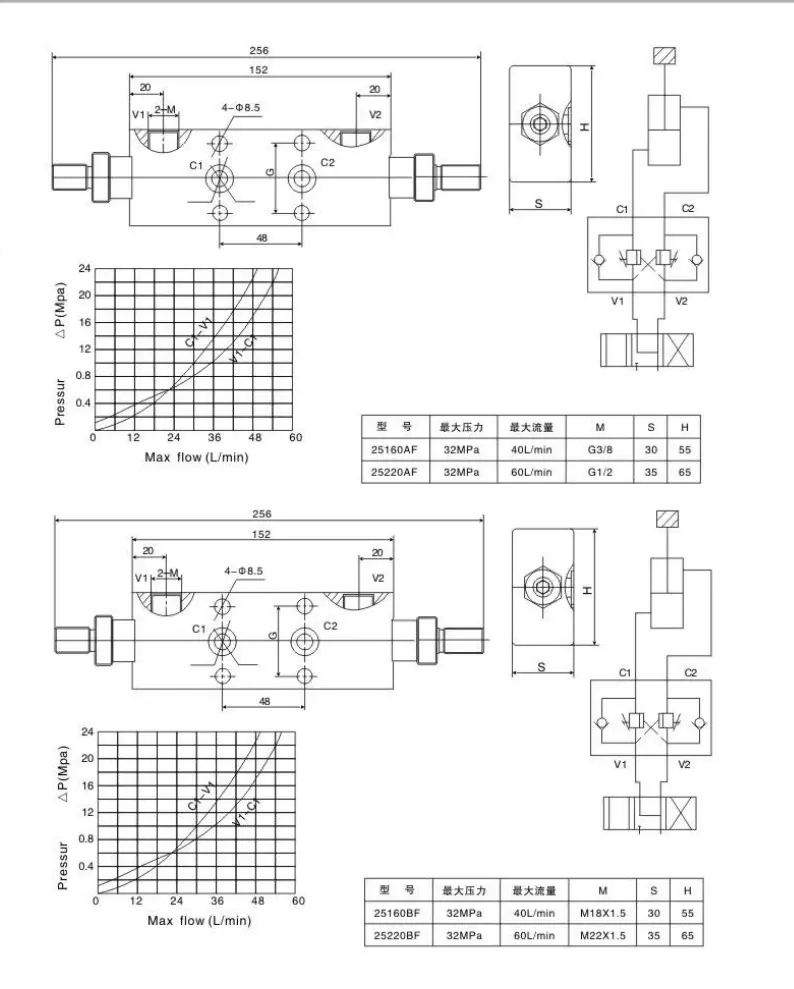

Dual in line compensated counterbalance valve

MATERIALS AND FEATURES:

Body: zinc-plated steel.
Internal parts: hardened and ground steel.
Seals: BUNA N standard.
Leakage: negligible leakage.
Standard setting: 320Bar.
Valve setting must be at least 1,3 times more than load pressure in order to enable the valve to close even when undergone to maximum load pressure


Details

Valve used to control the movement and locking of the actuator in both directions by realising the controlled descent of the load that does not escape dragged by its own weight, as the valve does not allow any cavitation of the actuator. It is insensitive to back pressure and is therefore used where normal overcenters do not function properly at load control, allowing the pressure set by the system to be used to operate multiple actuators in series.

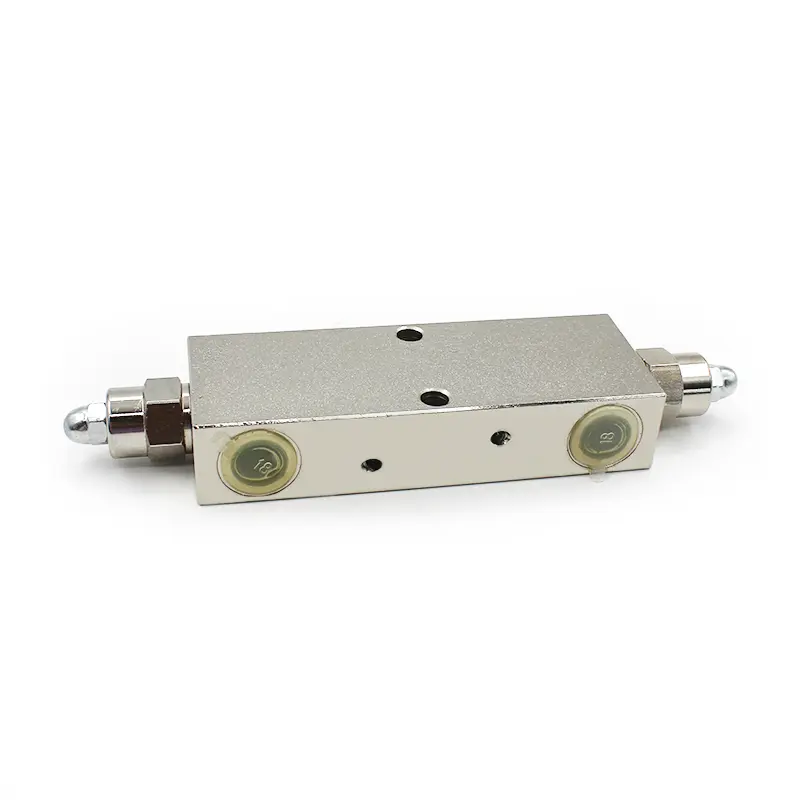

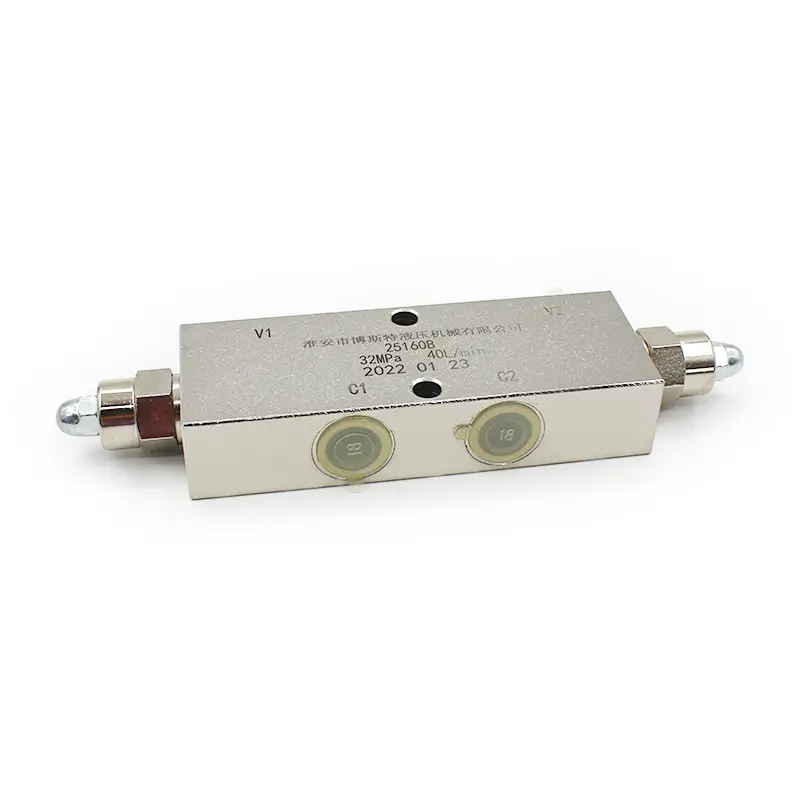

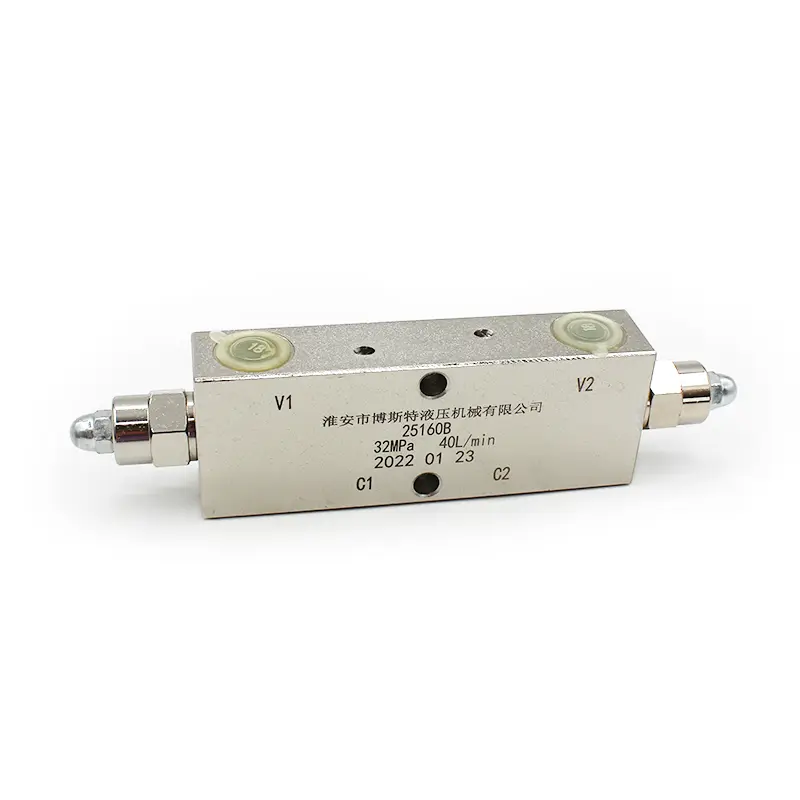

Dual in line compensated counterbalance valve
Dual in line compensated counterbalance valve
