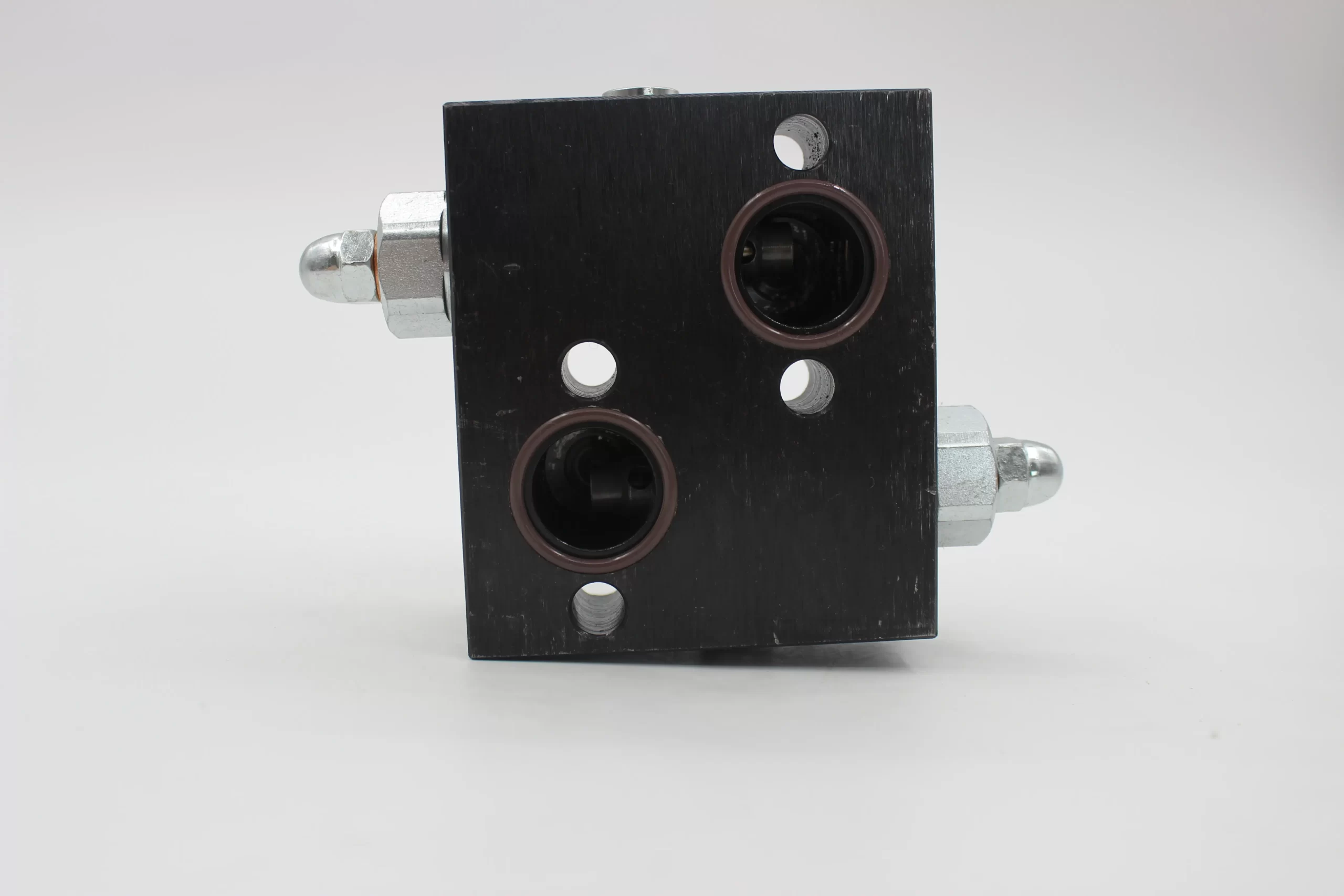

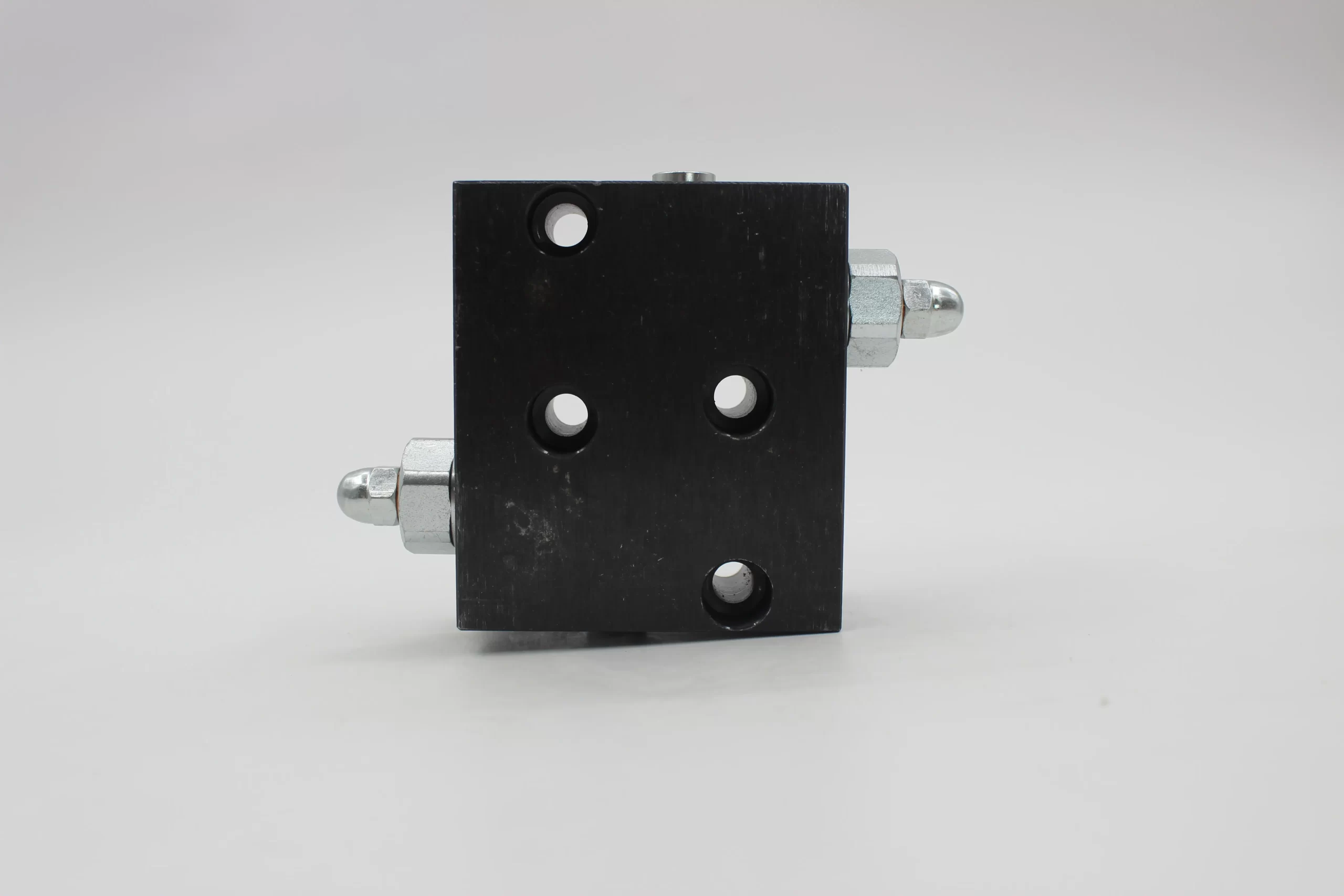

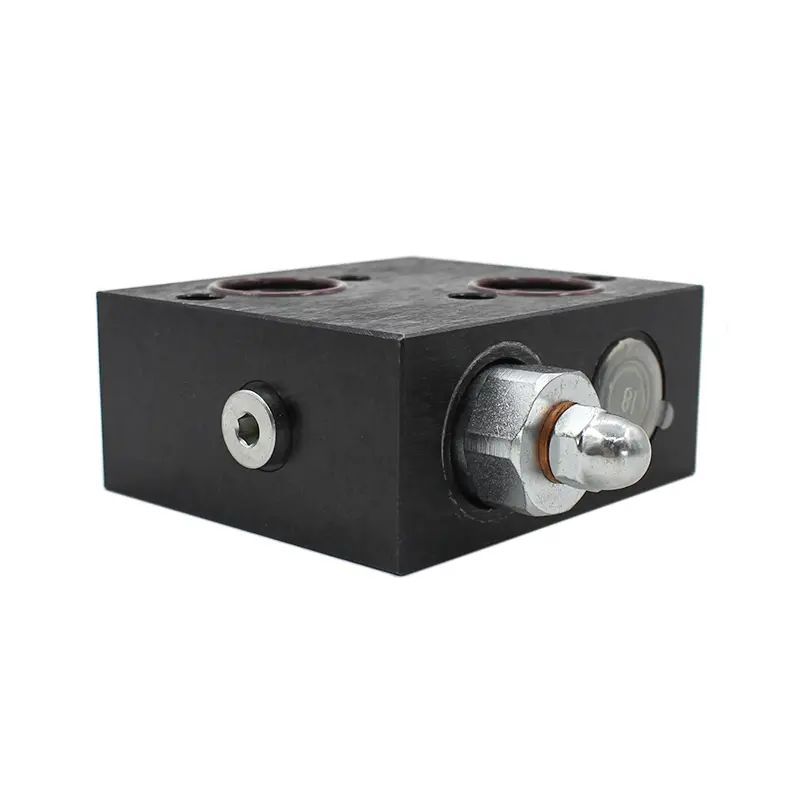

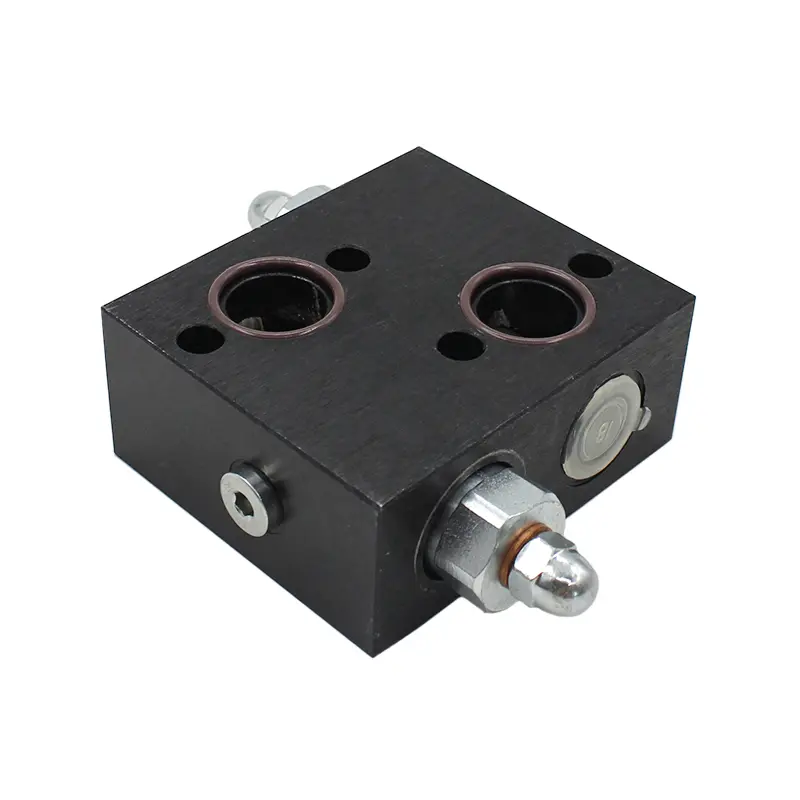

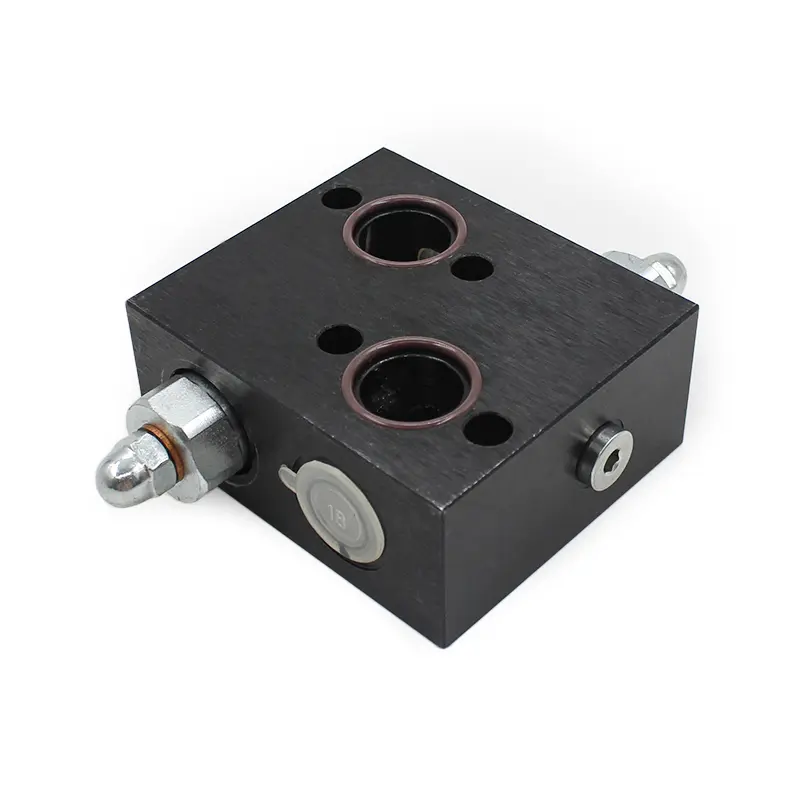

Made up by 2 relief valves with crossed tank, this valve is used to block pressure to a certain setting in the 2 ports of an actuator/hydraulic motor. It's ideal to provide protection against sudden shock pressures and to adjust different pressures in the 2 ports of an hydraulic circuit as well. Direct flange is ideal for Danfoss motors type OMS, OMP-OMR and OMT and provides a maximum safety, very low pressure drops and solid installation.

In applications where a hydraulic actuator may be subject to a shock or other unexpected event followed by a sudden pressure spike, DCF anti-shock valves limit damage to the actuator itself and the hydraulic system. The flange design according to OMP/OMR standards makes the valve particularly suitable for installation on hydraulic gerotor motors. The DCF dual crosshatch direct-operated relief valve operates at flow rates up to 40 lpm (10.6 gpm) and operating pressures up to 350 bar (5075 psi). The valve body and other external parts are made of steel and are galvanized to prevent corrosion.
